Product Details
- Place of Origin: qingzhou
- Brand Name:
- Model Number: 6-S

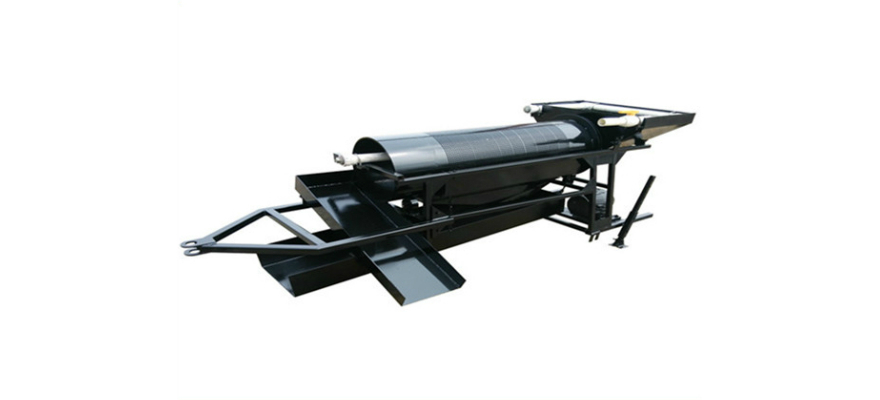

Portable Gold washing equipment with Patent
Product Description
1.Feature
1).Portable placer mining plant 's widely used for portable gold rush plant
2).Easy to move,because of the small volume.
Product Description
1.Feature
1).Portable placer mining plant 's widely used for portable gold rush plant
2).Easy to move,because of the small volume.
3).Feeding by manual.
2.Main parts
The trommel screen mainly consist of motor,reducer,drum units,racks,ring of clamp,black block gine,discharge hole,
Feed port,polyproplyene board, screen body etc.Inclination of drum equipment ,motor is connected by reducer&the
Drum unit,the drive drum rotate around its axis.
- Place of Origin: qingzhou
- Brand Name:
- Model Number: 6-S
.Basic Parameters
It is just for reference,should be made according to your mine situation.
Model | KDTJ-10 Gold Trommel | KDTJ-5 Gold Trommel |
| Machine size(mm) | 2900 *1200*1500 | 2800*1350* 1150 |
| Processing capacity | 5-10t/h | 1-5t/h |
| Screen | ||
| Screen size (mm) | 530(Dia.)*1800(Length) | 400(Dia.)*1300(Length) |
| Mesh | 8mm | 8mm |
| Driven type | By belt | By belt |
| Diesel engine | Portable Diesel Engine with CE certificate | Portable Diesel Engine with CE certificate |
| Oil Tank | 2.5L | |
| Feeder hopper(mm) | 1200*810 | 1066*568 |
| Gold Felt | ||
| Rough gold felt(mm) | 2000*600(1pc) | 1500*400(1pc) |
| Fine gold felt(mm) | 2000*600(1pc) | 1500*400(1pc) |
| Water pump | 2inch with water pipe | 2inch with water pipe |
| Capacity | 5m3/set, | 3m3/h |
| 4 sets per 20GP container | 4 sets per 20GP container | |
| 8sets per 40GP container | 8sets per 40GP container |
