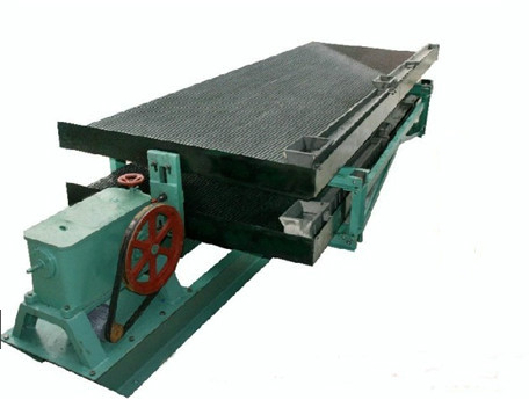

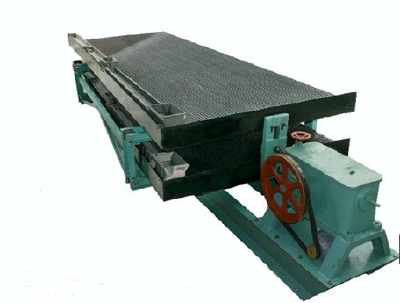

     6-S shaking table is one of the main equipment of gravity concentration, it is widely used in separating tungsten, tin, niobium, gold and other rare metals and precious metal. Can be used for roughing, selection, and choose different operations, such as, selecting coarse sand (2-0. 5 mm), fine sand (0.5 0.074 mm). The slime different grade (0.074) and so on. Can also be used to choose don't iron, manganese ore and coal. When processing the minerals such as tungsten, tin, table of effective recycling granularity range is 2-0.22 mm.

    Beneficiation process of shaking table is in the compound of the tilting table surface, mineral grain group from the Angle of feeder trough into bed surface, and at the same time by bad supply lateral flushing water, water and mineral grains in gravity, transverse flow momentum, asymmetry of bed surface for reciprocating movement under the action of the inertia and friction, according to the proportion and granularity theory, then make the longitudinal motion along the bed surface and lateral movement along the inclined bed surface. As A result, the proportion and granularity of different particles along the movement direction of the respective gradually from point A to B and fan flow, respectively from the concentrate and tailings discharge side of the different area, the last is divided into concentrate, middlings and tailings.

    6-S shaking table with high rich ore ratio, high efficiency, "easy, easy to adjust stroke. Changing transverse slope and stroke is still can keep the surface of bed movement balance, spring is placed in the casing, compact structure, and can, in turn, the final concentrate and tailings in the end.
